How to Add Streamlabs as an Ingest for Live Streaming

Follow these steps to connect Streamlabs Desktop to your ingest and start streaming.

Step 1:Start Server and Open the Ingests Page

Before you go live, make sure the destination you want is set up and enabled on the Destinations page. Then start your server and open the Ingests page at https://streamable.run/ingests. A running server only means your cloud production environment is available; it does not mean Streamlabs Desktop is connected yet.

Step 2:Select StreamLabs (Desktop) and Copy the Connection Details

On the Ingests page, select your ingest. Then select StreamLabs (Desktop).

Copy the complete URL value. It includes the stream key.

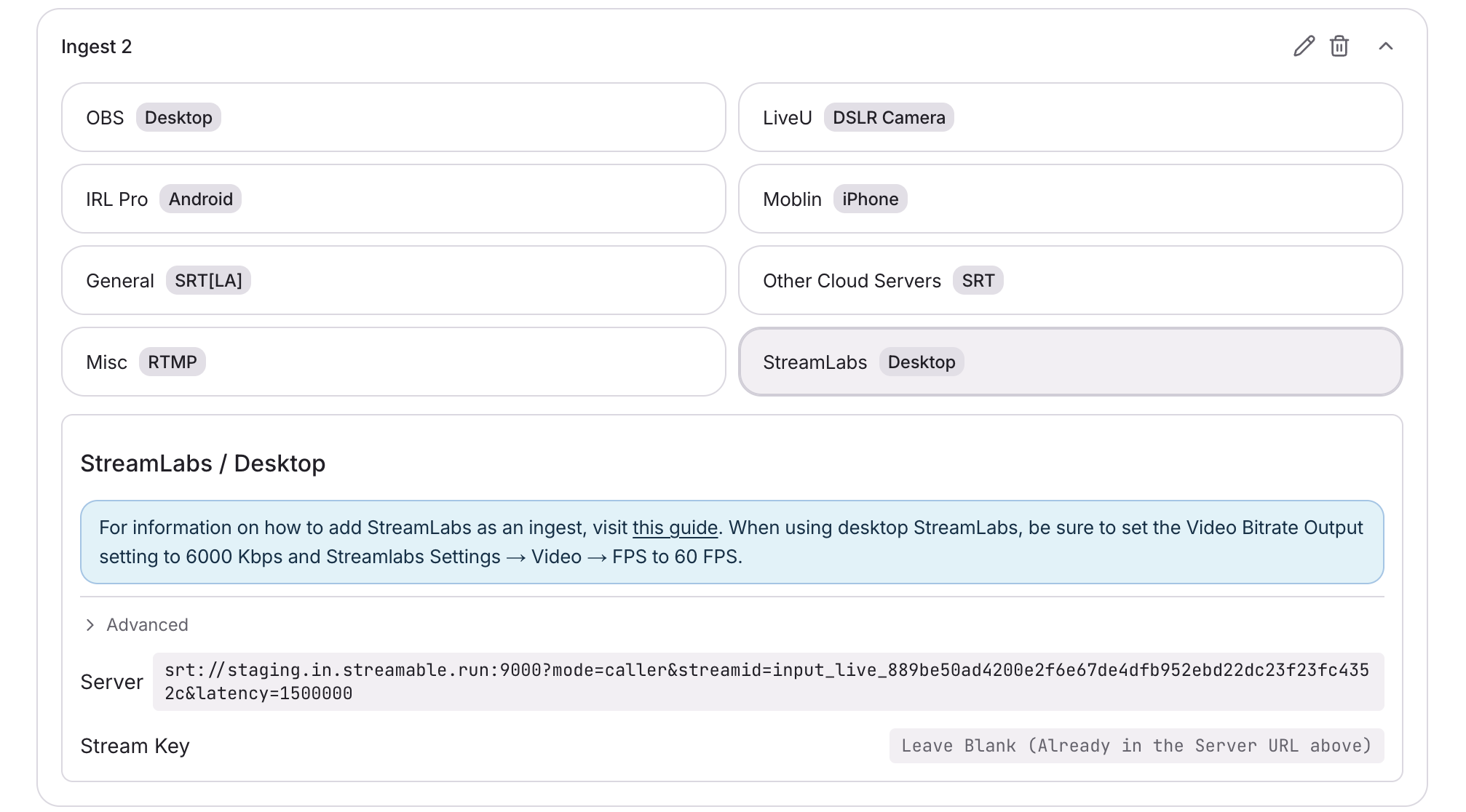

StreamLabs / Desktop connection settings in Streamable.
StreamLabs / Desktop connection settings in Streamable.

Step 3:Configure Streamlabs Desktop Stream Settings

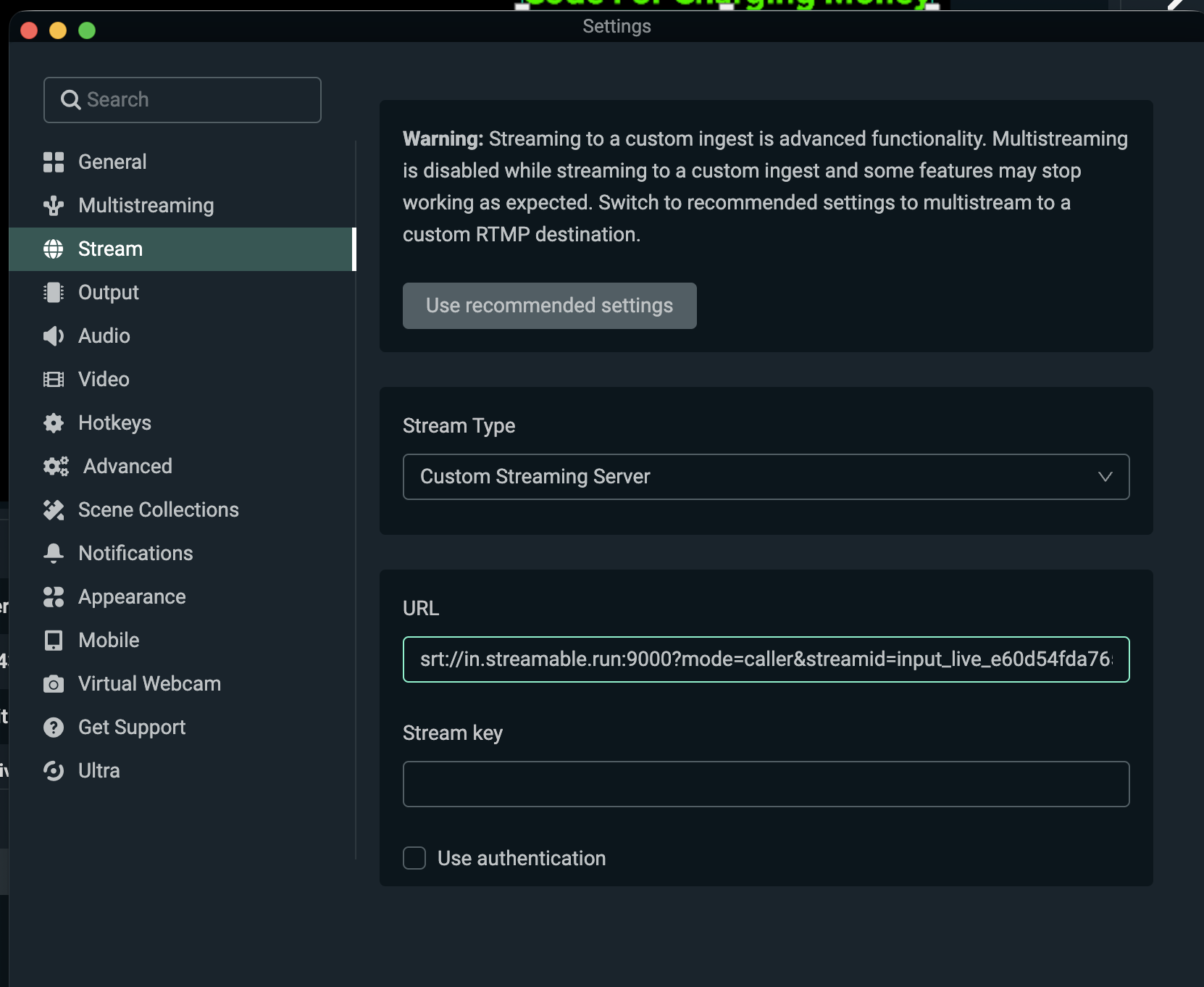

  • In Streamlabs Desktop → Settings → Stream, set Stream Type to Custom Streaming Server
  • Paste the complete URL value from Streamable into URL in Streamlabs Desktop.
  • Leave Stream key empty. The stream key is already included in the Stream URL
  • Leave Use authentication unchecked
  • In Streamlabs Desktop → Settings → Output → Video Bitrate → Set to 6000 Kbps
  • Set FPS to the value shown in your Streamable ingest instructions. This matches your cloud video settings.

6000 Kbps is the recommended starting bitrate. The frame rate must match your Streamable video settings.

Step 4:Click Go Live in Streamlabs Desktop

On the Dashboard, select your input in Ingest manager. Select its scene, then confirm the video in Stream preview.

Step 5:Happy Streaming!

On the Dashboard, click Start Stream. Select the destinations in the dialog, then confirm the start.
